9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
Supports PoE power up to 123 W for all PoE ports*

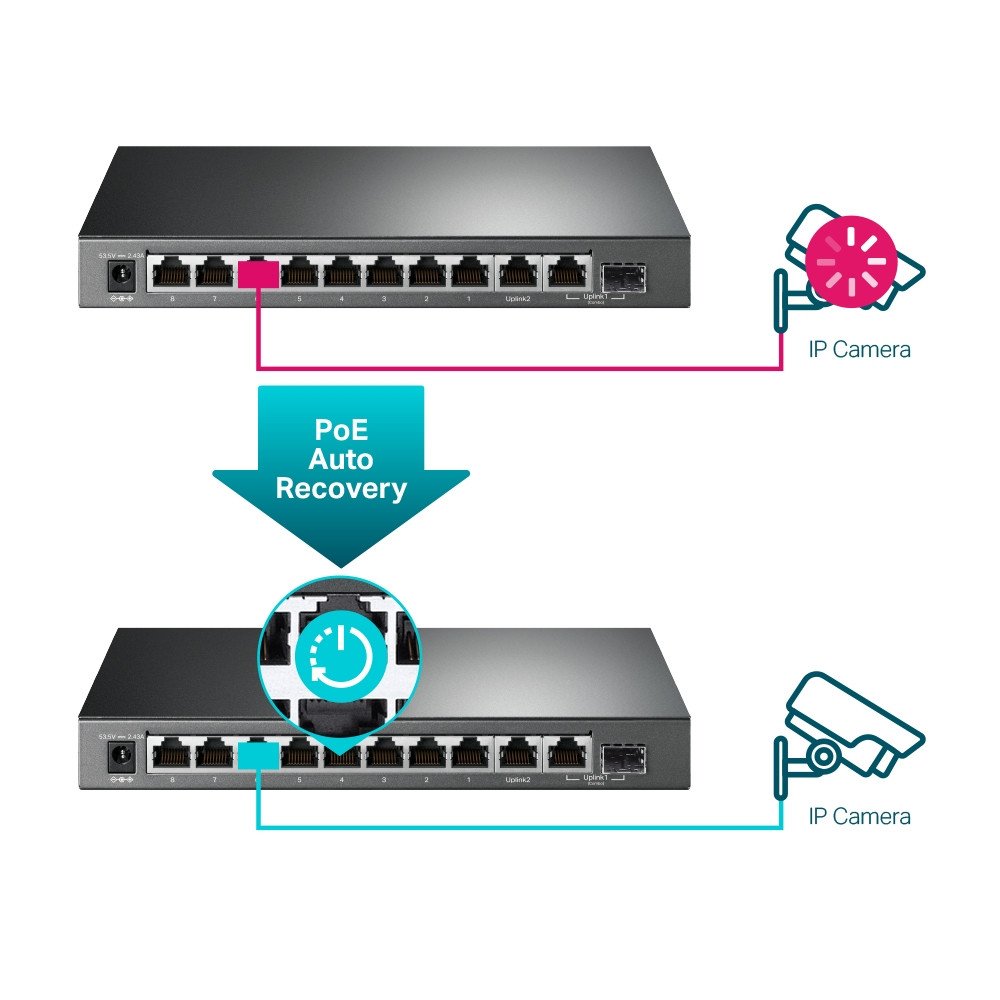

Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration
Fanless design lowers energy consumption and eliminates operating noise
HARDWARE FEATURES |
---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z |
---|
Interface | 9× 10/100/1000 Mbps RJ45 Ports 1× 1000 Mbps Combo SFP/RJ45 Port AUTO Negotiation/AUTO MDI/MDIX
|
---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
|
---|
Fan Quantity | Fanless |
---|
Power Supply | External Power Adapter (Output: 53.5 VDC/2.43 A) |
---|
PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 8 PoE Power Budget: 123 W
|
---|

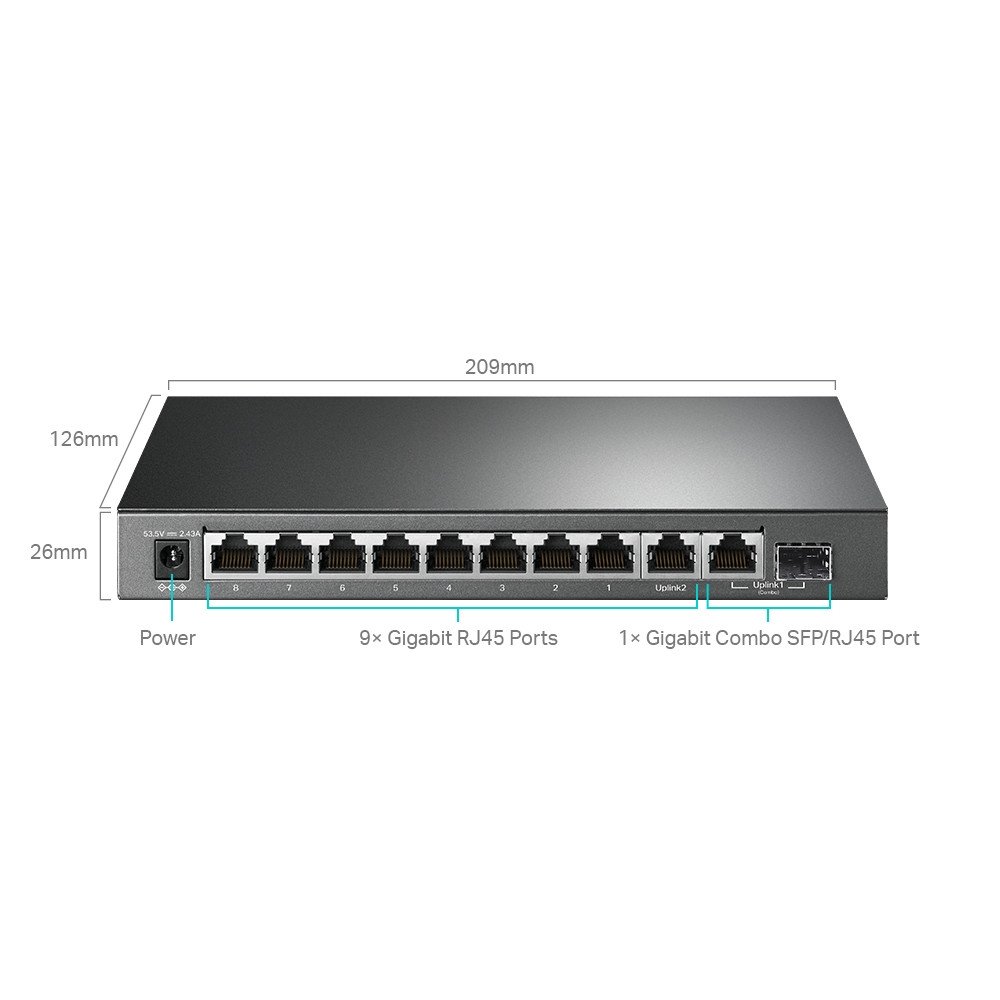

Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
---|
Max Power Consumption | 7.66 W (220V / 50Hz with no PD connected) 141.54 W (220V / 50Hz with 123 W PD connected) |
---|
Max Heat Dissipation | 26.12 BTU/h (220V / 50Hz with no PD connected) 482.65 BTU/h (220V / 50Hz with 123 W PD connected)
|
---|
PERFORMANCE |
---|
Switching Capacity | 20 Gbps |
---|
Packet Forwarding Rate | 14.88 Mpps |
---|
MAC Address Table | 4 K |
---|
Jumbo Frame | 16 KB |
---|
SOFTWARE FEATURES |
---|
Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
|
---|
L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
---|
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
|
---|
PoE | Extend Mode** PoE Auto Recovery |
---|
Management | Web-based GUI Easy Smart Configuration Utility
|
---|
Transmission Method | Store-And-Forward |
---|
OTHERS |
---|
Certification | FCC, CE, RoHS |
---|
Package Contents | TL-SG1210MPE Power Adapter Installation Guide Rubber Feet
|
---|
System Requirements | Microsoft® Windows® for running Utility |
---|
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |
---|
